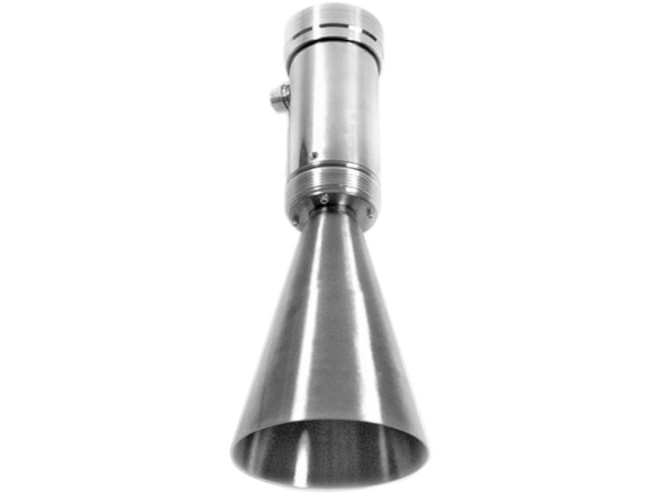

The PTX1700-LK pulse radar level transmitter for Solids brings the unassailably accurate level readings of radar sensors to difficult to measure solids. Whether powders or pellets, grains or granules, the PTX1700-LK dual frequencies to allow it to quickly and accurately read the complex reflections from piled solids. The PTX1700-LK also automatically adjusts signal power for optimal accuracy and clarity. With echo masking and damping factors programmable via software, getting dependable level readings from difficult materials is simple.

Features

1、Ranges: 17, 50, or 100 feet

2、±0.25% of measured range accuracy

3、6.1μA output resolution

4、Field configurable 4-20 mA/20-4 mA Output

5、RS-232, RS-485, or HART communications

6、PC calibration, diagnostic and data logging software

7、PLC compatible (Modbus RTU)

8、Nema 6/ IP68 enclosure rating
