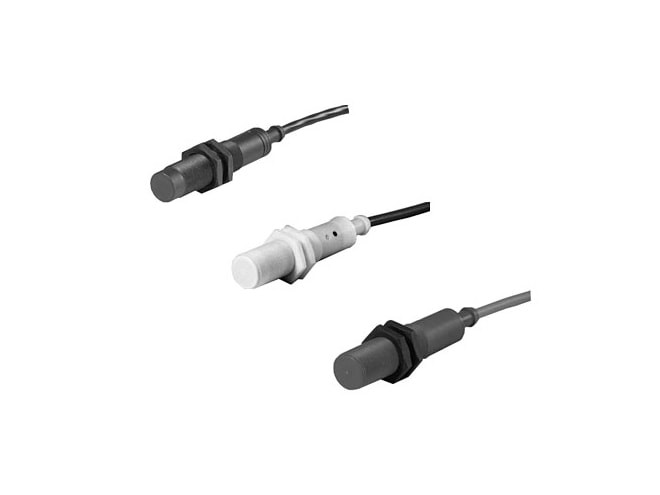

PTX7430-PI  capacitive proximity sensors are capacitive proximity switches with an adjustable sensing distance of 3 to 8mm (3 to 12mm for non-flush mounted units). Four-wire DC output with both make (NO) and break (NC) switching is a special feature of the PTX7430-PI  capacitive proximity sensors.

Housed in polypropylene, PVC, or Teflon, PTX7430-PI  capacitive proximity sensors come with 2 meters of cable. An IP67 rating (NEMA 1, 3, 4, 6, & 13) makes the PTX7430-PI  capacitive proximity sensor ideal for use in level applications in chemical, semi-conductor, and food & beverage industries.

Features

1、Featuring TRIPLESHIELD sensor protection

2、Adjustable sensing distance 3-8mm or 3-12mm

3、Rated operational voltage: 10-40VDC

4、DC 200mA, NPN or PNP output

5、Make and break switching function

6、LED indication

7、High noise immunity

8、Flush and non-flush types

9、Cable versions
