PTX7400-PI capacitive proximity sensors feature a sensing distance of 16mm when flush mounted in metal or a sensing distance of 25mm when non-flush mounted. 4-wire DC output with both make (NO) and break (NC) switching or 2-wire AC output with a switch for choosing NO and NC switching are available to the PTX7400-PI capacitive proximity sensor.

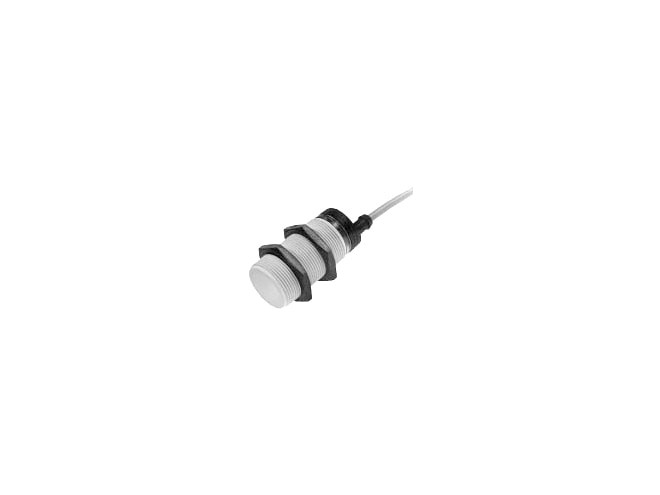

PTX7400-PI capacitive proximity sensors come in grey M 30 polyester housing with a 2m PVC cable or plug. The PTX7400-PI capacitive proximity sensor is ideal for use in level and plastic machinery applications.

Features

1、Featuring Tripleshield Sensor Protection

2、Adjustable sensing distance 2-16mm or 4-25mm

3、Rated operational voltage: 20-250VAC or 10-40VDC

4、DC200mA; SCR output

5、Make and break switching function

6、LED indication

7、High noise immunity

8、Flush and non-flush types

9、Plug and Cable versions available

10、AC or DC versions in the same housing
