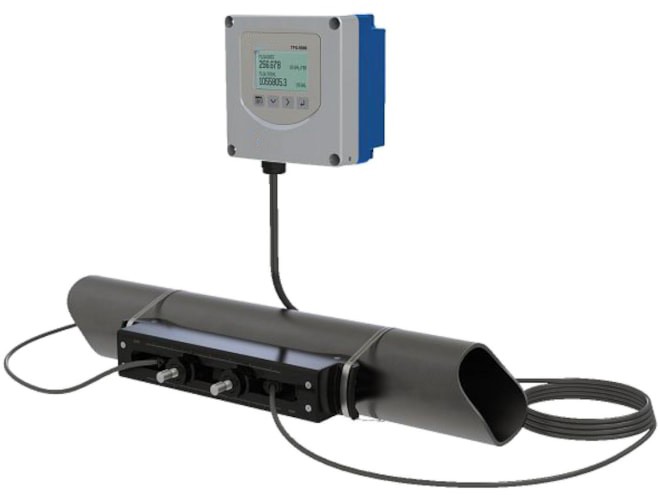

The PTX2701-FD Ultrasonic Flow Meter measures volumetric flow and heating/cooling energy rates in clean liquids as well as those with small amounts of suspended solids or aeration, such as surface water or raw sewage. TFX-5000 flow and energy meters clamp onto the outside of pipes and do not contact the internal liquid. The TFX-5000 meter is available in a variety of configurations that permit the user to select a meter with features suitable to meet particular application requirements.

By clamping onto the outside of pipes, the meters have inherent advantages over other flow meter technologies, including:

1、Reduced installation time and cost

2、Non-invasive, non-contact measurement

3、Continued operation during installation—no need to shut down the process

4、No pressure head loss

5、No moving parts to maintain or replace

Features

1、Bi-directional flow measuring range

2、Data log up to 8 records

3、Flow accuracy:

Medium/large pipes: ±0.5% 0.049 ft/s (0.015 m/s)

Small pipes: ±1% ± 0.03 ft/s (0.009 m/s)

±1% of full scale

4、0.2% above 1.5 ft/s repeatability

5、Large, easy-to-read graphical display
