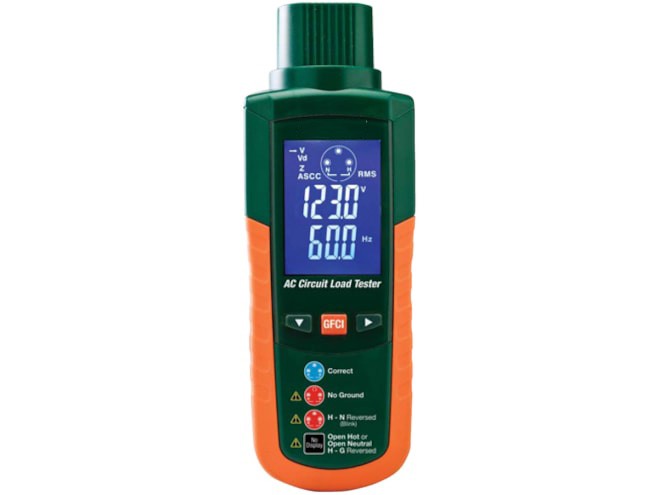

The PTX1010-RV AC circuit load tester quickly checks for AC outlet load handling capabilities plus outlet tester functions. Measuring AC voltage from 90.0 to 240 V, the CT70 also offers a frequency from 45.0 to 65.0 Hz and a peak line voltage of 350.0 V.

As an AC load tester, the PTX1010-RV circuit load tester has selectable loads of 12, 15 and 20 Amps and measures loaded and unloaded AC line voltage. Other outlet testing functions include neutral to ground voltage, hot, neutral and ground impedance, GFCI trip time and current and open or reversed wiring.

Features

1、 AC Load Tester Functions:

Selectable loads of 12, 15 and 20 Amps

Measures loaded and unloaded AC Line Voltage

Calculates and displays % Voltage Drop and Line Impedance

Displays Peak Line Voltage and Frequency

2、Outlet Tester Functions:

Neutral to Ground Voltage

Hot, Neutral and Ground Impedance

GFCI Trip Time and Trip Current

Open or Reversed wiring
