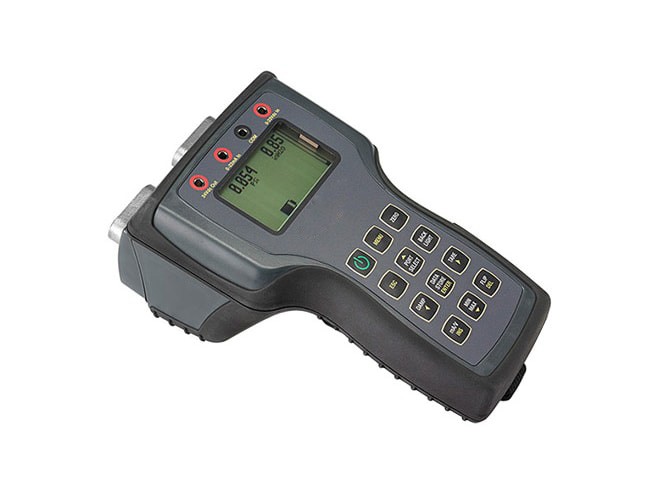

The PTX7002-PI handheld calibrator can display up to two modules and one electrical measurement simultaneously, along with logging data to internal memory or communicating directly to a PC via USB connection.

The PTX7002-PI works with a wide selection of pressure modules, covering ranges from 0.25 inches of water through 10,000 psi. The base unit design allows the user to operate one or two modules. Modules are interchangeable, and can be changed without the need of tools, minimizing downtime.

Features

1、AM2 modules required for measuring pressure & temp

They are interchangeable & ordered separately

2、12 standard user selectable units & 1 custom value

PSI, inH2O, inHg, ftSW, BAR, mBAR, kPa, MPa, mmHg, cmH2O, mmH2O, kg/cm2

Custom value programmed by user

3、Onboard 24VDC loop power (not with IS version)

4、Data logging for up to 15,700 records

5、Back lit display with 180° flip feature

6、IP65 / NEMA 4X enclosure

7、Meets CE and RoHS standards

8、Optional intrinsically safe approvals for hazardous areas

FM, ATEX, CSA
