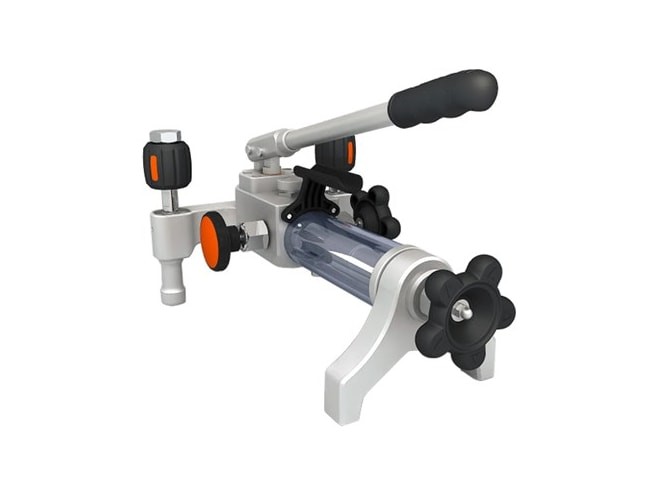

The PTX7100-PI hydraulic pressure test pump is a hand-operated pressure pump designed to generate pressure to 15,000 psi (1,000 bar). This pump incorporates a dual-piston system which is ideal for filling large volume workload with the hand pump and providing smooth increase and decrease of pressure with the fine adjustment.

The PTX7100-PI test pump incorporates an isolation valve which isolates the calibration volume from the check valve associated with the hand pump. Because the check valve can often be a source of leaks and maintenance, the isolation valve provides more stable measurements and reduces potential maintenance of the pump. Two hand-tight quick connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches. The PTX7100-PI is an ideal comparison test pump for calibrating pressure measuring instruments such as test gauges, indicators or transducers in the field or laboratory.

Features

1、Pressurize large-volume workload

2、Generate to 15,000 psi (1,000 bar) pressure

3、Mineral oil, deionized water, or Skydrol oil (phosphoric acid ester) media

4、Dual-piston system

5、Portable only 8.6 lbs (3.9 kg)

6、Increase and decrease pressure smoothly

7、Hand-tight quick connectors
